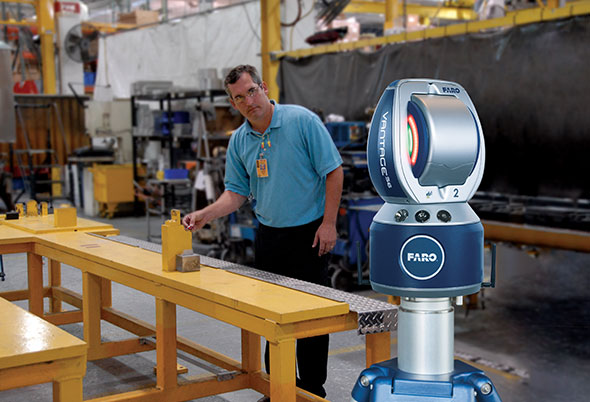

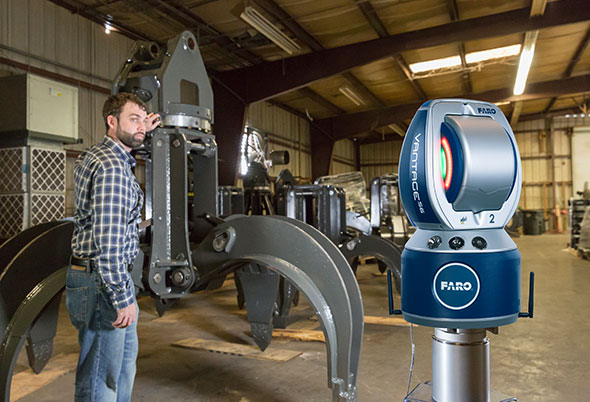

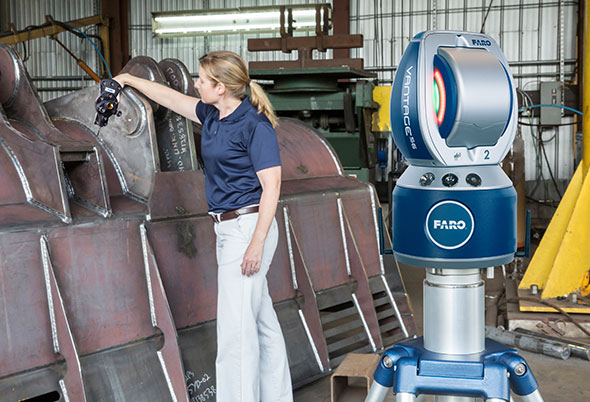

LARGE-SCALE, 3D MEASUREMENT IS NOW FASTER AND EASIER THAN EVER WITH FARO LASER TRACKERS

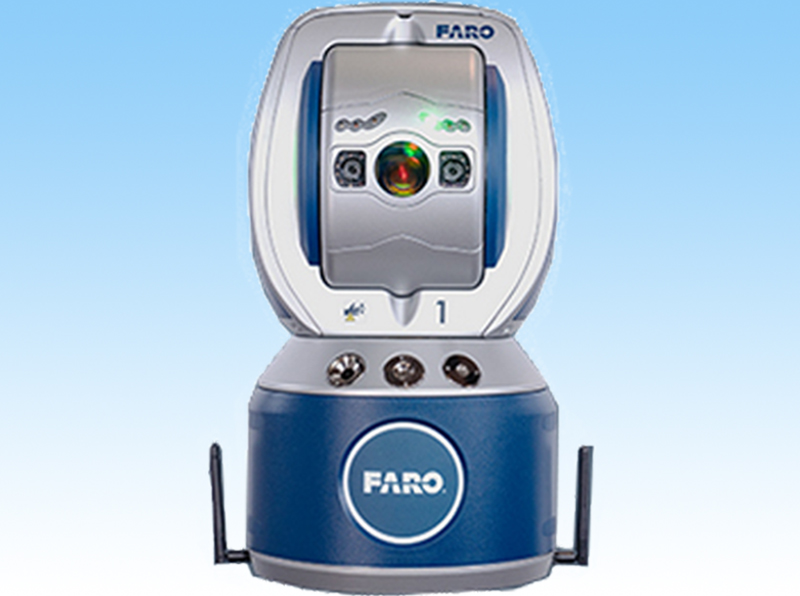

FARO Vantage^® Laser Trackers optimize workflow productivity for large-scale metrology applications including, but not limited to, assembly alignment, part and assembly inspection, machine installation and alignment, and reverse engineering.

        Both compact and portable; the Vantage line of laser trackers offers an array of amazing features:

•         ActiveSeek^™ technology that allows the laser trackers to find and follow the target, even after the user passes behind obstructions.
•         6DoF (6 Degrees of Freedom) Handheld 6-Probe enables the user to measure hidden areas that are not in direct line of sight, as well as small, tight, hard-to-reach areas.
•         High-Speed Dynamic Measurement
•         RemoteControls^™ Workflow
•         Exceptional Portability and Ruggedness
•         Easy Integration with FARO’s Patented Super 6DoF TrackArm Solution

ENGINEERED WITH FEATURES THAT MATTER.

ActiveSeek

Quickly and efficiently locate and lock onto a target:

•         A CMM machine that follows a moving target, even behind objects and/or obstructions by reconnecting as soon as the target is in view.
•         Dynamic searching finds you wherever you are in the field of view.
•         The widest field of view in the industry gives the user complete freedom to move throughout a large measurement envelope.
•         Compatible with both conventional SMR probing and 6DoF probing.

6 Degrees of Freedom (6DoF)

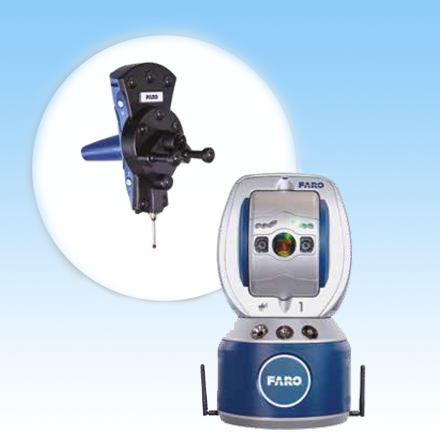

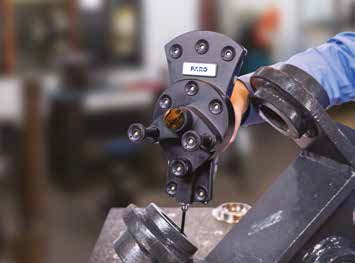

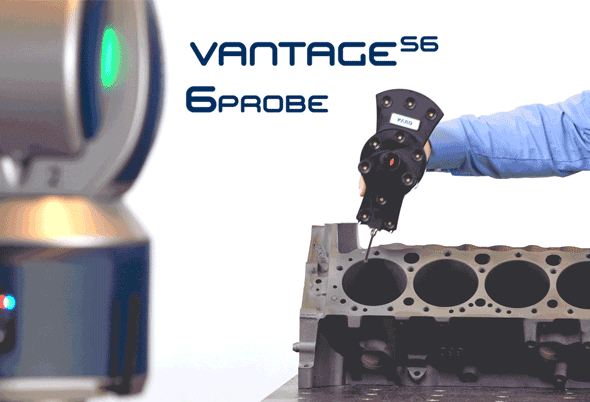

        The FARO 6Probe is a fully-integrated wireless handheld probe that dramatically increases versatility and efficiency of the laser measurement system.

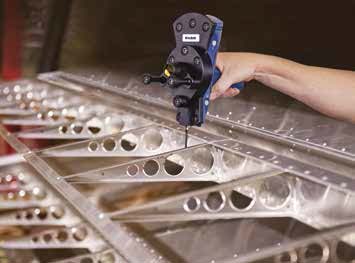

•         Delivers the ability to measure hidden areas (that are not in the direct line of sight) as well as small, tight, hard-to-reach spaces and on small features that cannot readily be probed with a standard SMR.
•         Interchangeable styli ensure the right length and diameter for the job.

Fast Data Acquisition

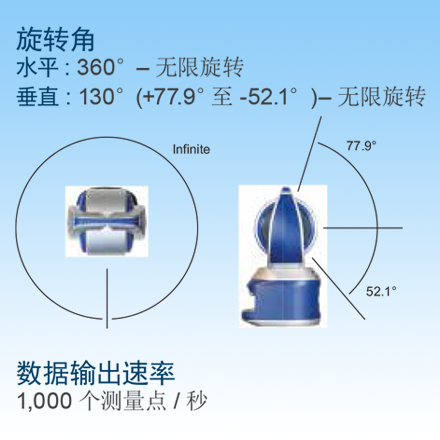

•         With a data output rate of 1,000 points per second, the Vantage Laser Trackers provide feedback for high-speed motion control and high-density scanning, making them ideal for automated applications.

Integrated Absolute Distance Measurement System (iADM)

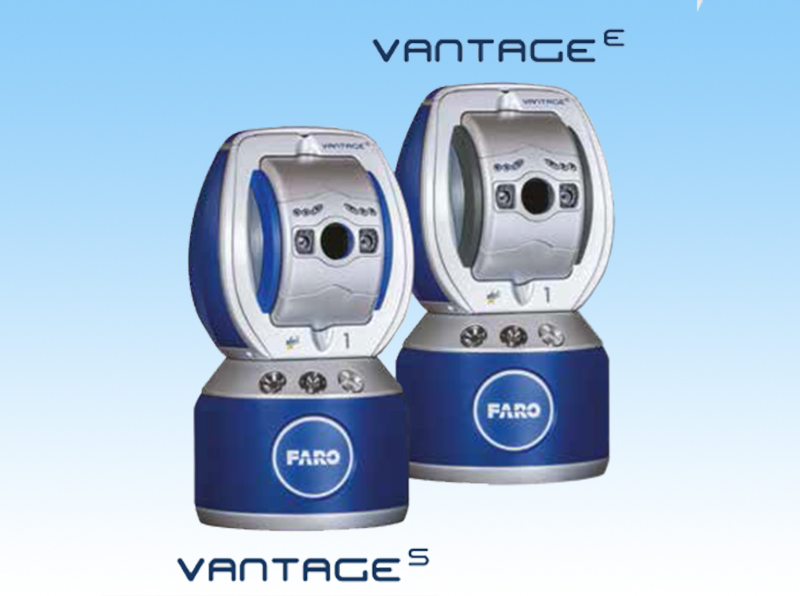

•         Our 6th generation iADM ensures exceptional accuracy. The Vantage^S and Vantage^E series laser trackers are the only portable CMM machines that measure angle and distance with a single, Class 1 (eye-safe) laser.
•         Measurement reliability is improved because errors and drift associated with two-beam tracker technology are eliminated.

RemoteControls Workflow

        This feature enhances the workflow of a tracker by allowing a user to control the movements and other functions of the Vantage with a mobile phone or tablet.

•         Live video feed from the tracker streams to your mobile device, allowing control anywhere in the working area.
•         Remote on/off and scheduled warm-up improve workflow by making the Vantage ready for immediate operation when the user begins measuring.

Exceptional Portability

        With an ultra-compact size and no external control unit, these IP52-rated systems have been rigorously tested.

•         Resistant to shock, vibration, temperature cycle, and humidity.
•         Fits in a single case for transport, these trackers are ready to travel wherever you need them.

Hot-Swappable Battery

•         Enabling continuous operation, eliminating the need for AC power.

Integrated WiFi

A CMM machine built for enhanced portability and convenience.

•         Faster connection time and greater range allow the Vantage to act as a WiFi access point.
•         Dual WiFi and wired Ethernet enable a connection with a PC and wireless device simultaneously.

Versatile Mounting

        Robust tracking enables the Vantage 3D measurement system to be mounted on a variety of stands in many configurations.

•         Vertically, horizontally, upside down.
•         Can fit almost anywhere you need it.

Integrated Weather Station

        Because atmospheric conditions matter.

•         Continuously monitors temperature, air pressure, and humidity.
•         The Vantage compensates accordingly to ensure accuracy.
