Real measurement robot

Release time：2023-03-01 09:46viewed：times

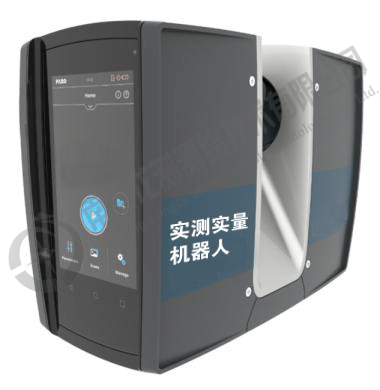

The measured real robot is an automatic measured real system based on 3D laser scanning technology and cloud computing technology. It is a new generation of measured real solution.

One-button operation and IP54 protection are suitable for complex working conditions, with 1 minute for data collection in each room and 3 minutes for data calculation in the background, with high operation efficiency.

The real robot is composed of 3d laser scanner, cloud computing platform, data management system and mobile APP.

Workflow

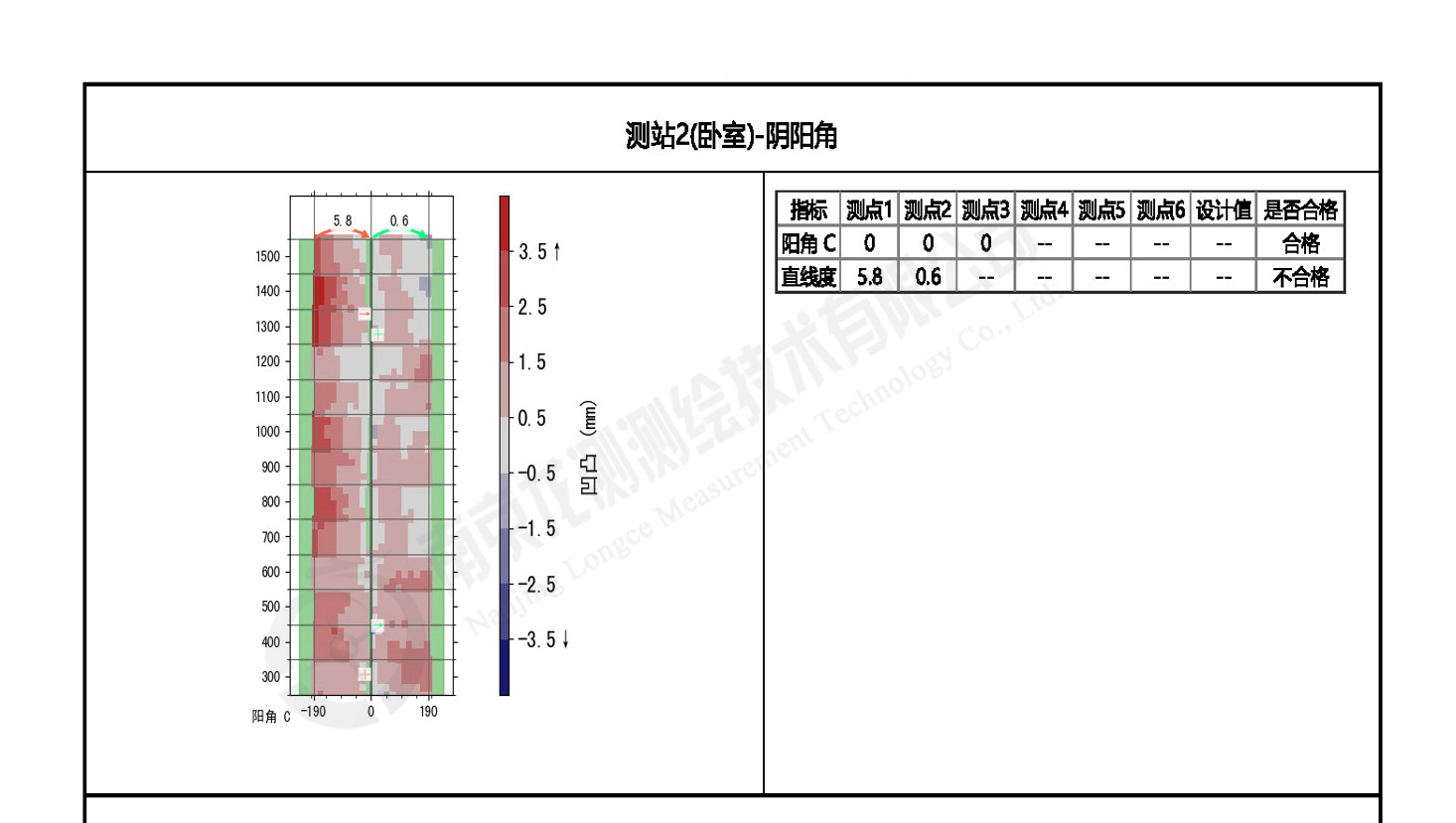

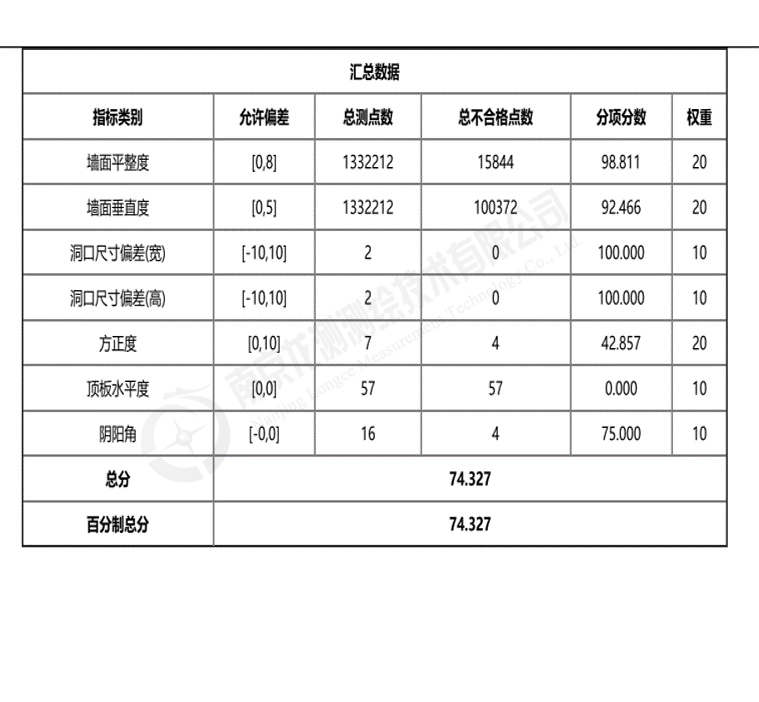

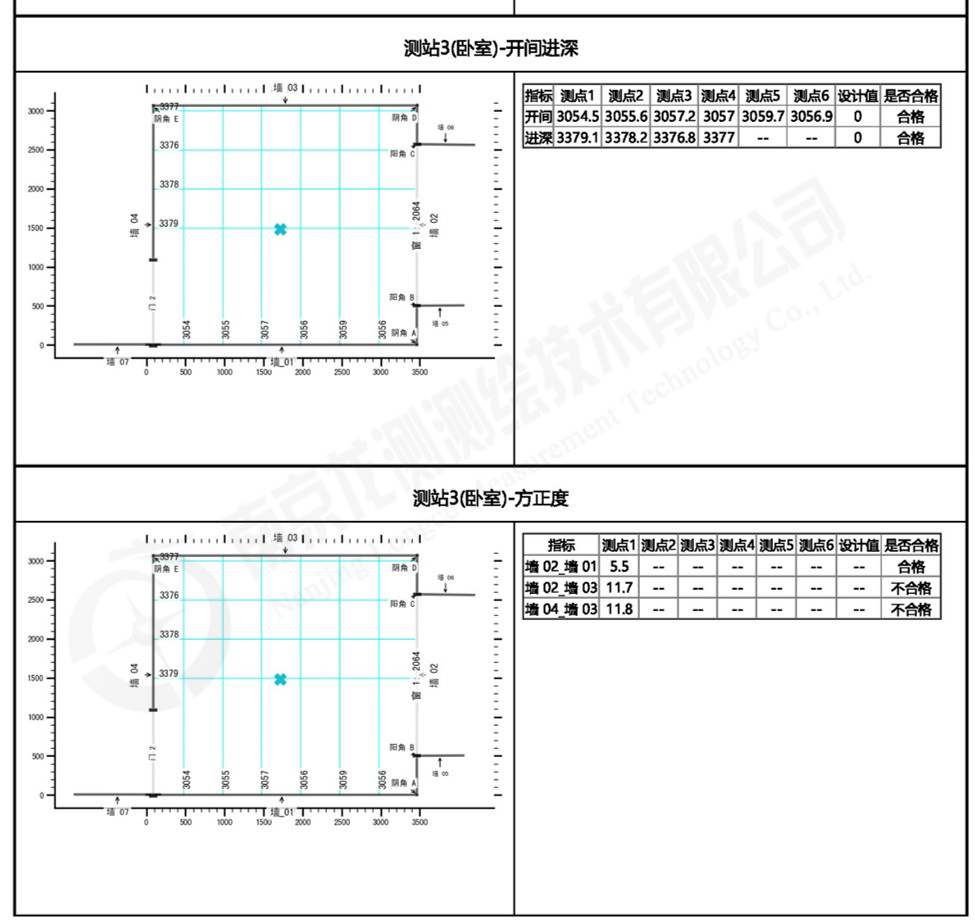

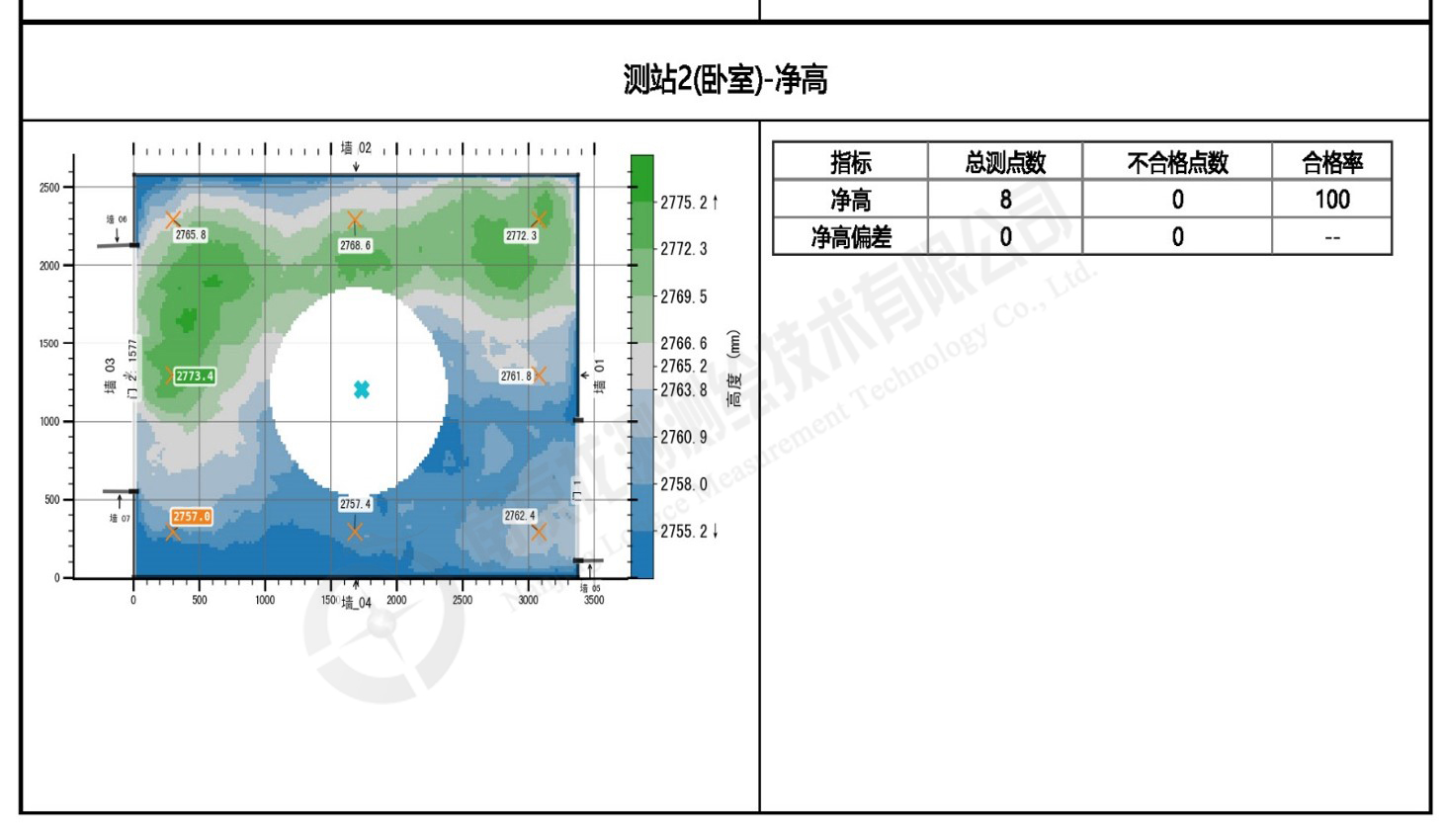

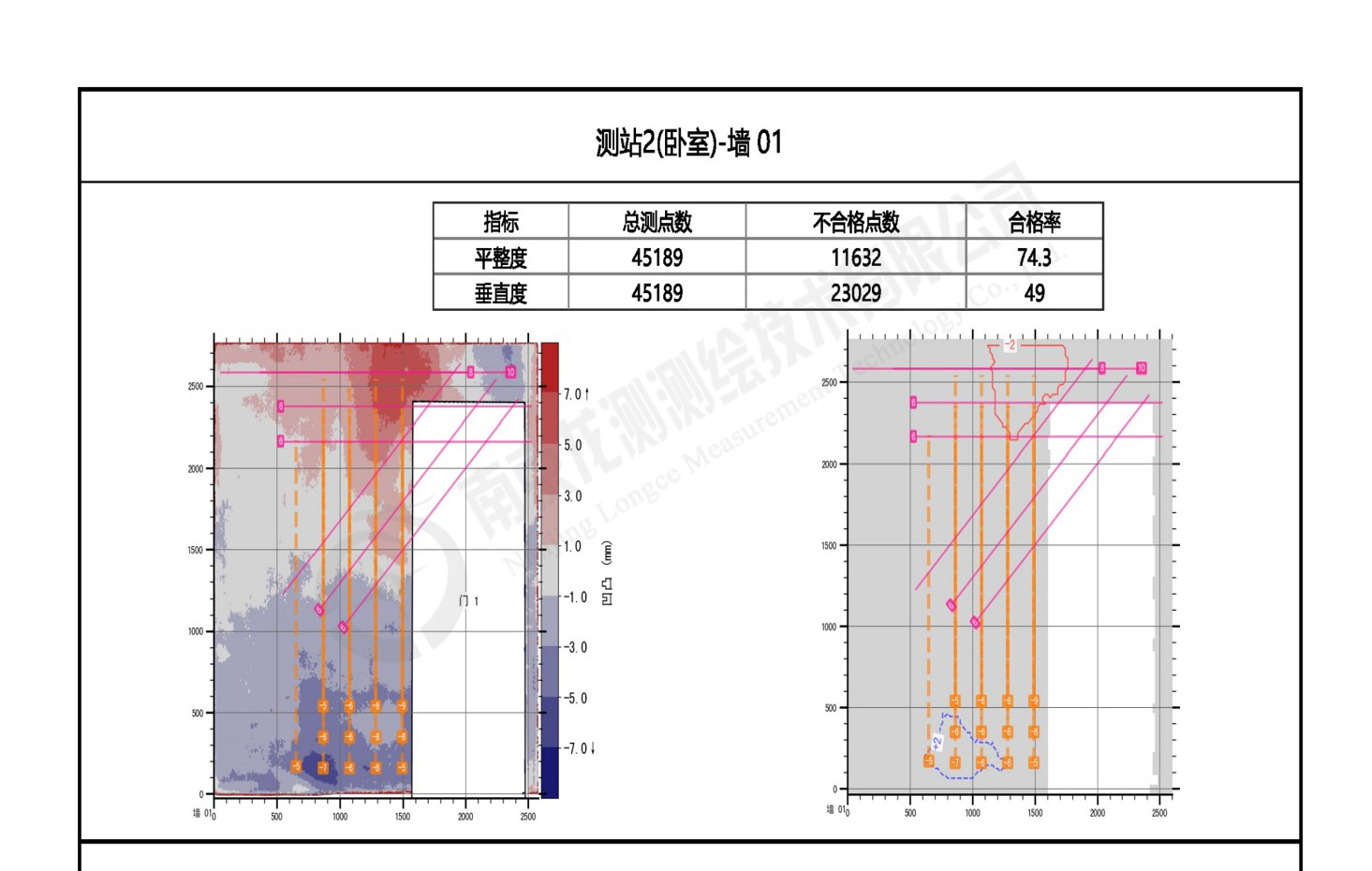

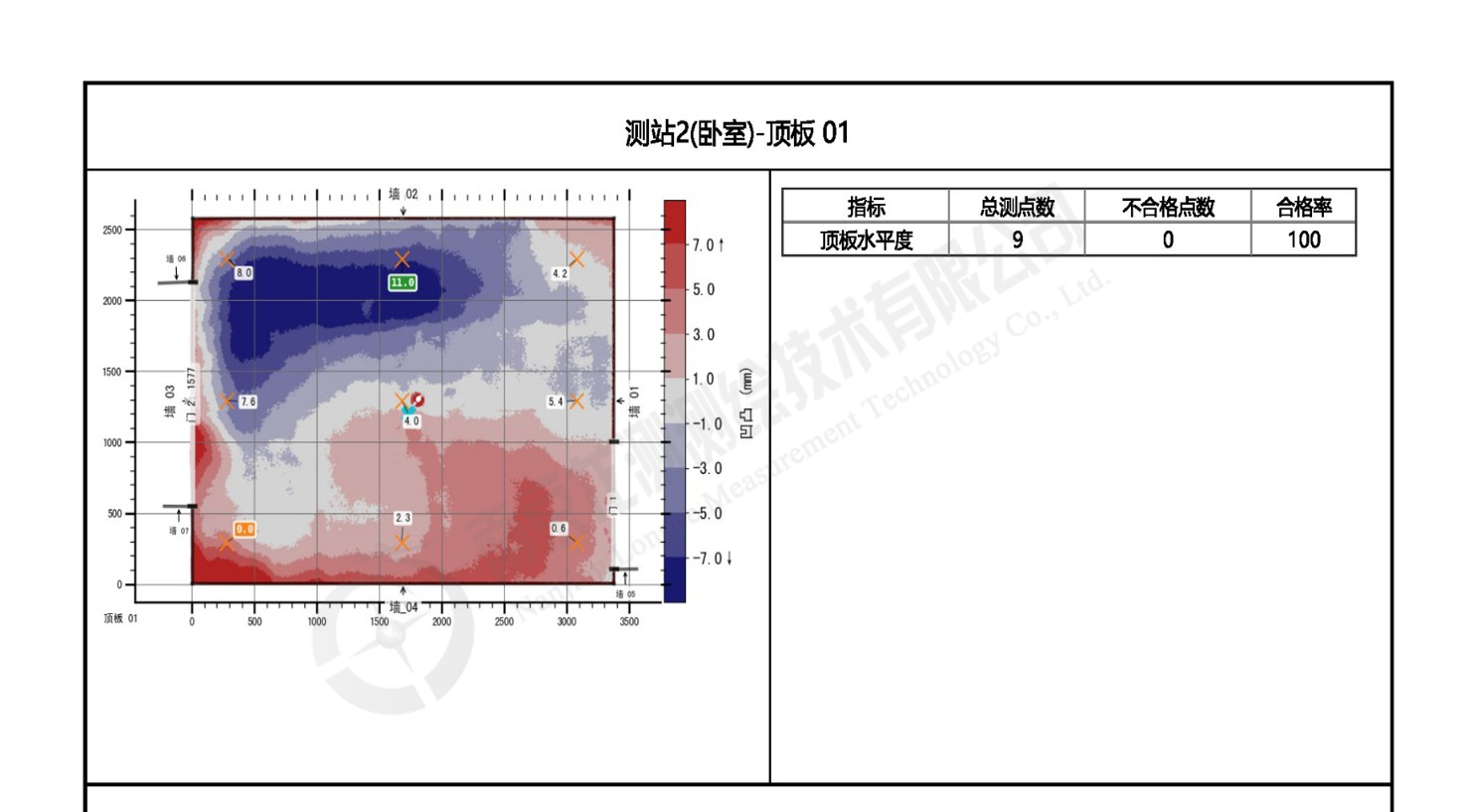

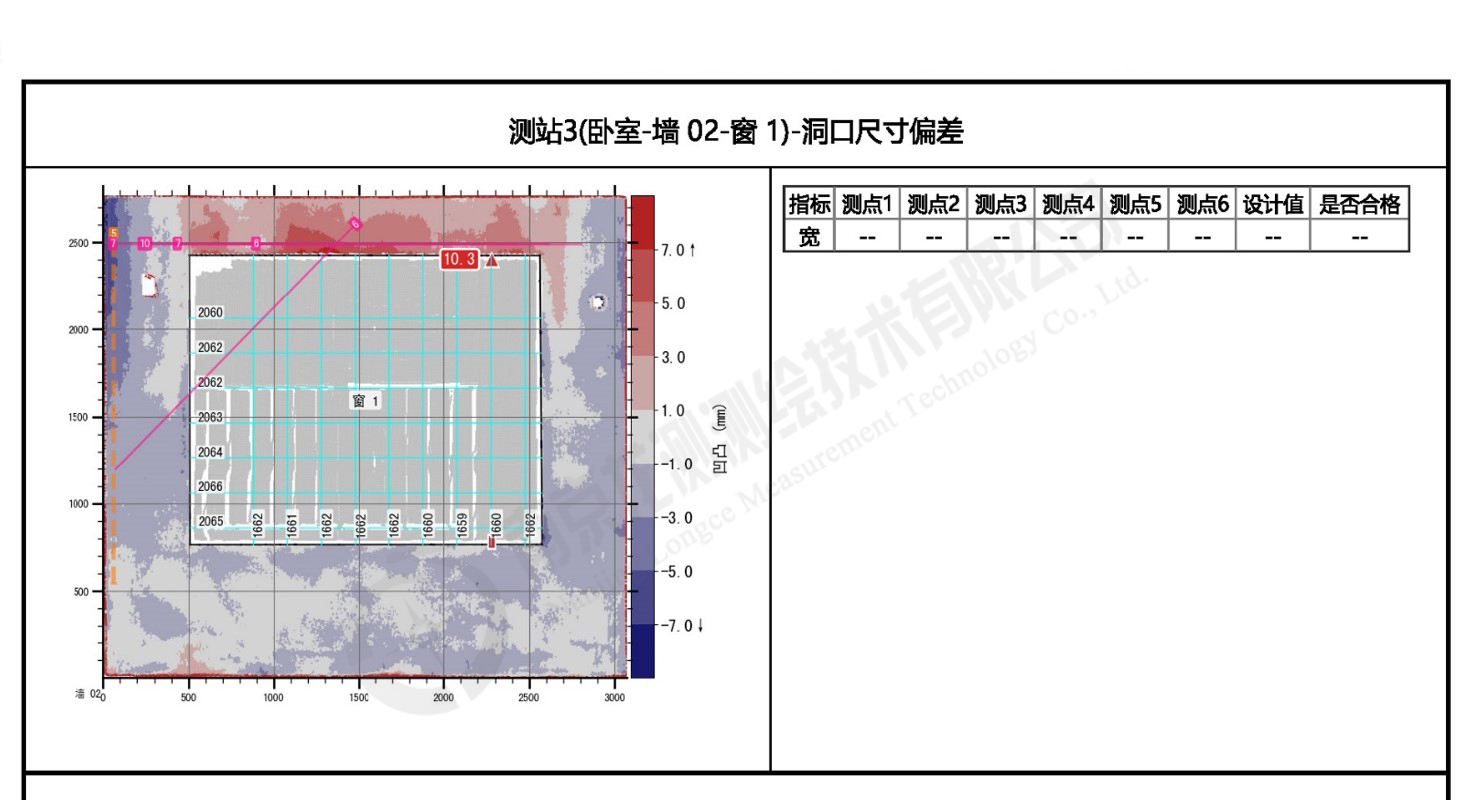

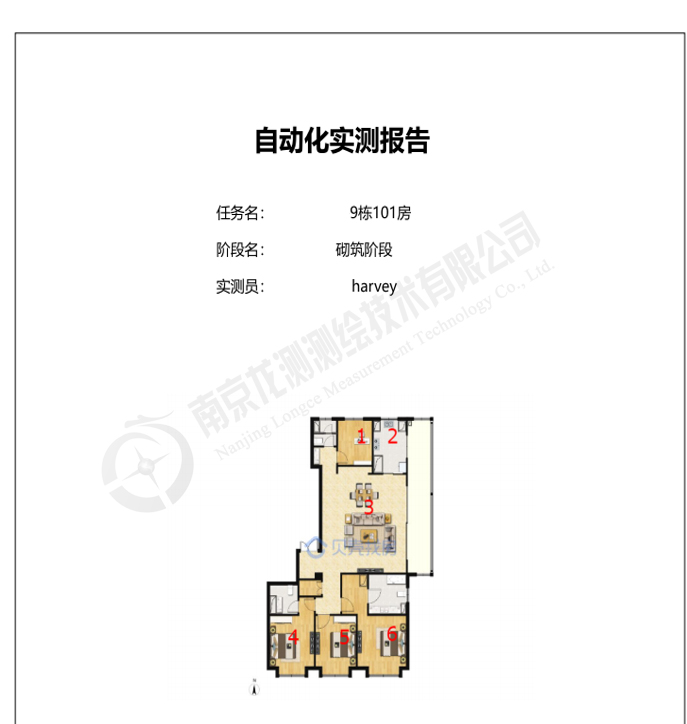

Task setting → scanner startup → on-site scanning → data calculation → cloud view results

Hardware technical specifications

The distance measurement error	±1-3mm
Laser Class	class 1
level of protection	IP 54
Working temperature	-20-55℃
Working time	Each battery works for 4 hours
The measured distance	70-350m
Instrument weight	4.4KG
The volume size	230183103mm
