RealityCapture: Photogrammetry Software

Release time：2021-06-16 11:02viewed：times

RealityCapture is a leading photogrammetry piece of software recognized for its speed and accuracy, and used by many professionals in wide range of industries.

It is advanced photogrammetry software, a world-leading solution that brings great freedom to your work and allows you to focus on your needs and goals.

Functions
Capturing data – Imports
◆Images - in recognized ﬁle formats, like JPEG, PNG, TIFF, EXR, WEBP, BMP, DNG, RAW for all cameras with installed driver
◆Frame captures from video ﬁles – in MPEG, AVI, ASF, QT, MOV, VMW
◆ Laser scans - in PTX, E57, PLY, ZFS and ZFPRJ
◆3D models - in OBJ, FBX, DXF, DAE
◆Stereoscopic images from FARO FOCUS
◆ Flights logs and ground control points, support of PPK/RTK data with precision
◆Support of image masks and different layers for texture or from AI segmentation

Aligning – camera registration
◆Automatic registrations of different inputs – photos and laser scans in one step
◆Possibility to create georeferenced or scaled scenes
◆Re-use of camera registrations using XMP metadata (e.g. with fixed camera setups)

Meshing
◆Generation of watertight 3D meshes with custom detail
◆ Mesh editing tools – simplification, smoothing, closing holes, mesh cleaning
◆Tools for checking and repairing model topology

Texturing
◆Calculating vertex colors
◆Creating UV maps with built-in unwrap tool
◆ Calculating model textures in UV and UDIMM format
◆ Re-projecting textures from high poly to low poly model
◆Generation of normal and displacement maps

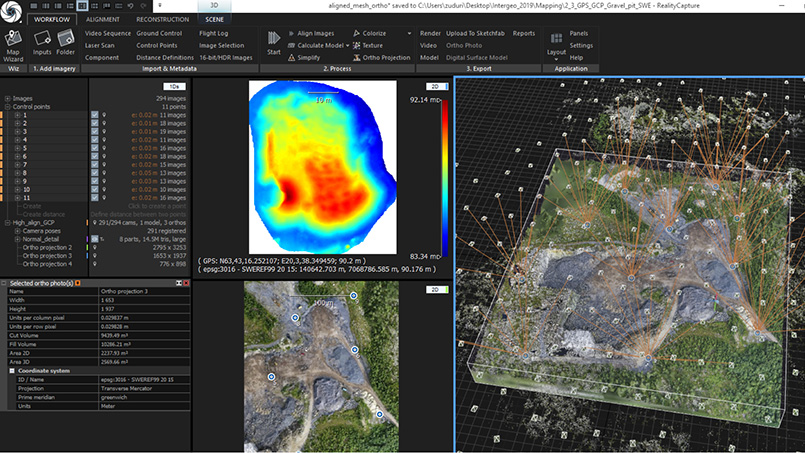

Orthophoto, DSM, DTM
◆Creating georeferenced orthographic projections and maps
◆Creating side and arbitrary projections
◆Generation of DSM and DTM
◆ Creating sampled projections

Sharing and Exports
◆Direct upload to Cesium Ion and Sketchfab
◆ Export of sparse and dense point cloud - in XYZ, LAS, PTX
◆Model export into standard formats - in OBJ, FBX, PLY, ABC, GLB, STL, 3MF, DXF, DAE
◆ Export of Level of Detail models and Cesium 3D Tiles - B3DM
◆Reporting system – sharing of pre-defined or custom quality reports
◆Exporting camera registrations, textures, ortho projections, DSM/DTM and more

Measuring, Classification and Inspecting
◆Automatic detection of coded targets, scene scaling and georeferencing
◆ Automatic conversion between different coordinate systems (EPSG database implemented)
◆ Distance, area, and volume measurements
◆Sparse point cloud inspections – camera relations and scene structure uncertainty
◆ Dense point cloud AI classification

Automation and Integration
◆ Command line processing and scripting
◆ Batch processing outside command line using RealityCapture commands
◆ Sending command-line commands to an already opened RC instance
(possibility to us high-level programming language to control the program flow)

Features
RealityCapture has been the first software to allow a fully automatic combination of laser scans and photographs.It is still the only software which is able to mix lasers and photos easily without seams and limitations.

Laser scanners are natively supported inside the application, not just mixing point clouds together, but they are fully involved even during a camera or a laser scanner pose estimation.

RealityCapture significantly outperforms all existing photogrammetry solutions in speed, accuracy and mesh quality.

- Automatic 3D model reconstruction of triangular mesh,
- Advanced coloring and texturing algorithms,
- Geo-registration into all world coordinate systems,
- Direct support of PPK/RTK flight logs, GPS in EXIF/XMP, and ground control points,
- Ortho projections, DSM & DTM computation, AI classify tool and export into the recognized standards such as tiff, geotiff,
- Volume, area, and distance measurements,
- 3D model export into standard formats (ply, obj, xyz),
- LOD export and direct upload to Cesium ion,
- Camera motion/calibration export to world standards (with custom scripts),
- Seamless combination of laser scans and photos,
- A set of tools for analyzing alignment quality and accuracy, geo-registration, mesh reconstruction, 3D model post-processing (filtration, simplification, smoothing), etc.
- Command line processing

Industries

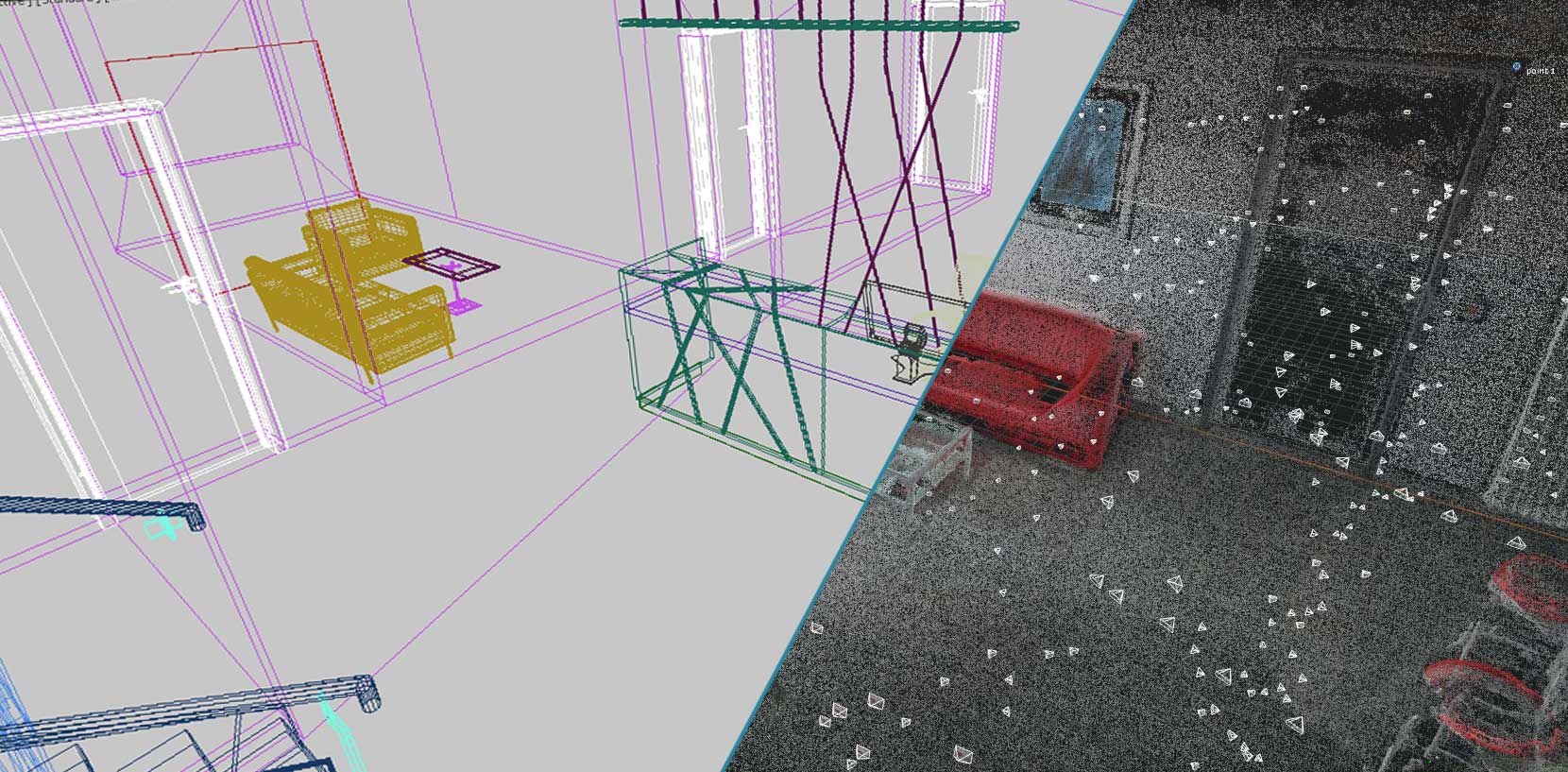

BIM and AEC
Create digital twins of building for planning reconstruction, new installation or for visual inspection of structure defects. The 3D Tiles export allows to use the result in any online inspection tool.

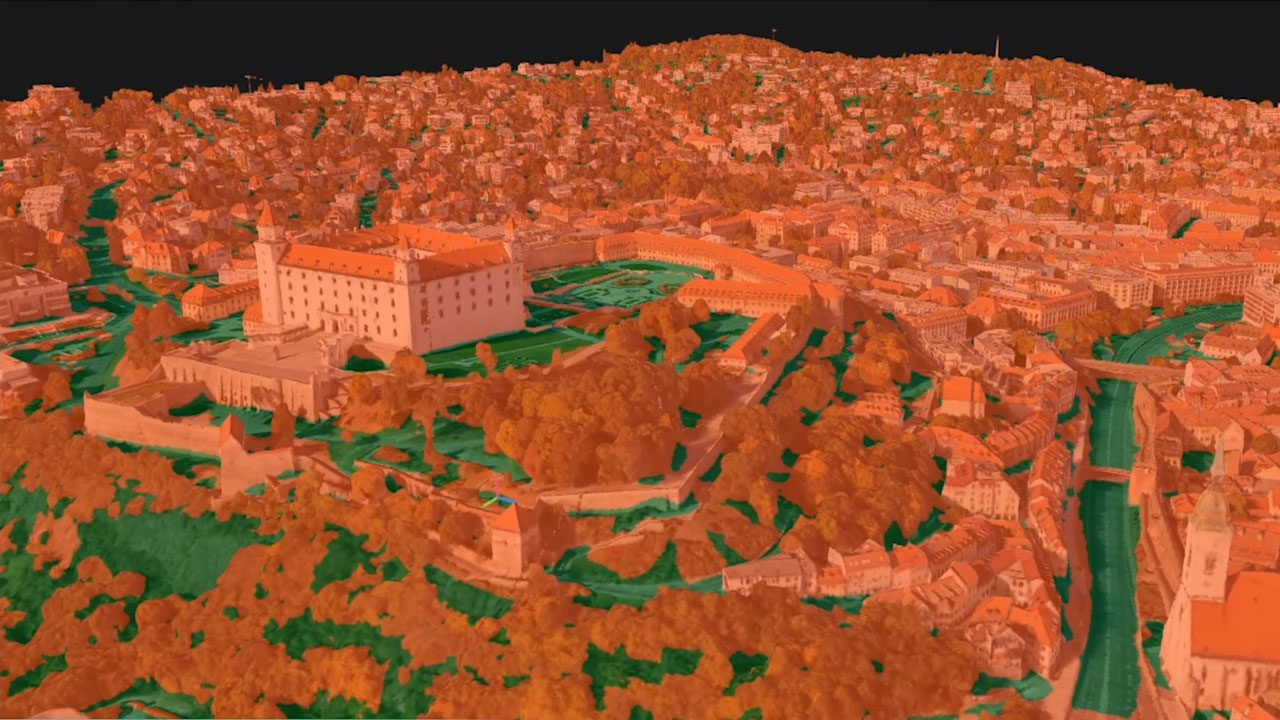

Surveying and aerial mapping

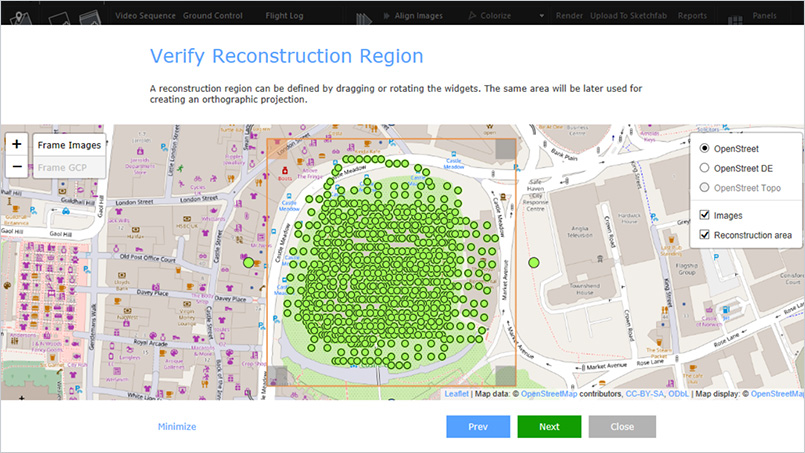

Using aerial photos and ground control points or PPK flightlog to create an accurate geo-referenced model ora point cloud for mapping purposes. Exporting orthophoto map, DSM/DTM and quality report, as well as anycut/fill measurements. Tools as Map Wizard make the process simple so that even a beginner should be able to get a solid output without too much effort or having a steep learning curve.

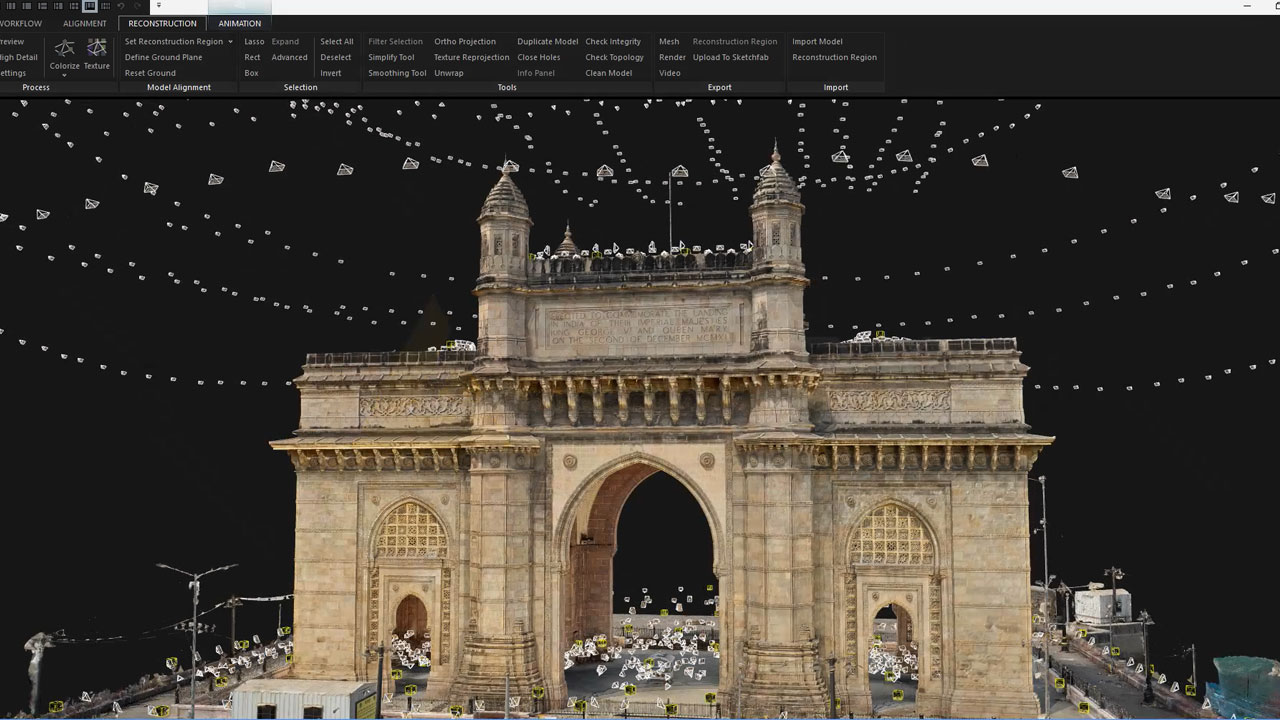

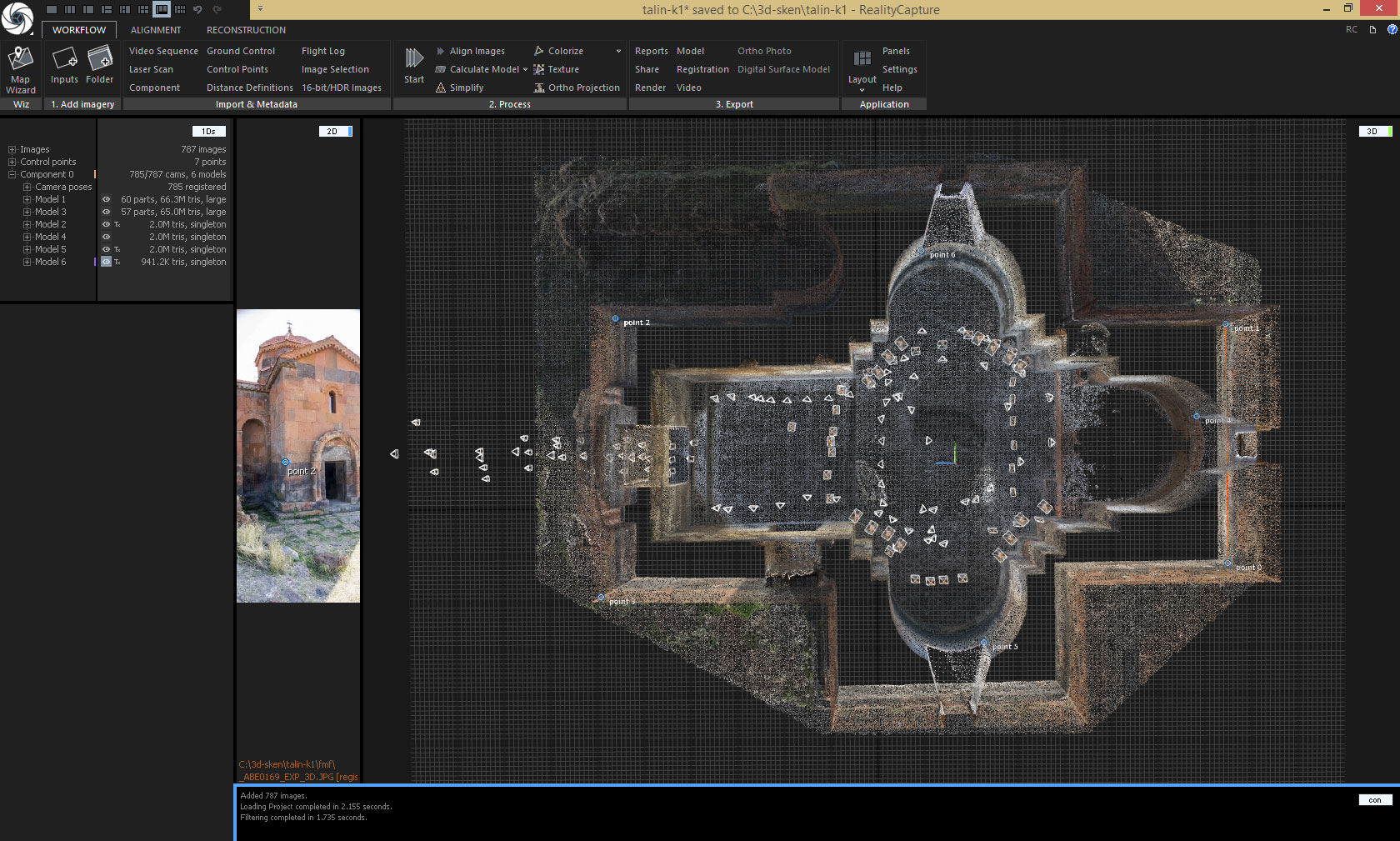

Cultural heritage conservation
Producing very detailed, 1:1 real world scale and proportionally correct models which suit as a perfect solution for preserving historical subjects.

VFX / Game industry
Hyper realistic assets created quickly and optimized well directly in RC using tools as filtering, simplify,smoothing, reprojection tool, clean model, and such. This can be automated with CLI scripting to produce assets fast enough; you produce easy integration in your pipeline.

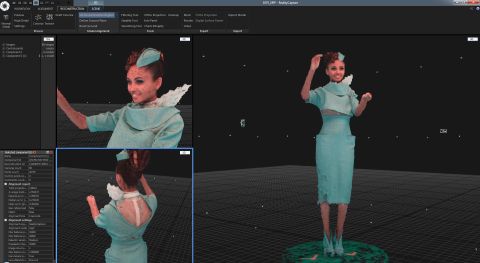

Full body scanning and product scans
Quickly use the camera to create 3D models.Using CLI automation and camera registration XMPs to make things even faster and very cost effective.

Accident or crime scene recording
Recording the accident scene with unprecedented fidelity much faster than before. Provide evidence with accurate measurements in the scene. Realistic 3D scenes in VR provide efficient tool for training of forensic officers.

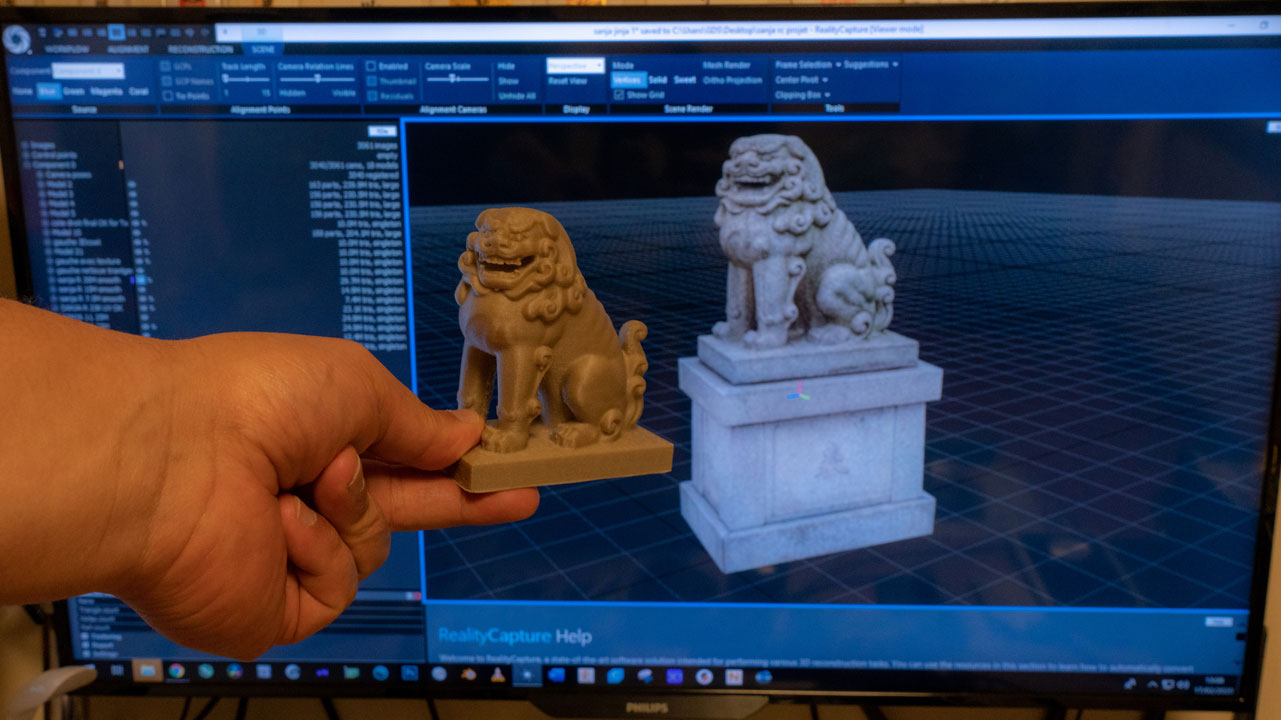

Manufacturing and 3D printing
Printing replacement parts easily by scanning the not documented original.

Research and education
There are many possible ways of use in science. For medical purposes all the way to creating 3D model of tiny bacteria. Capturing Reality supports education with tailored licensing models.

HW requirements and compatibility
• Local processing without size limitation, no cloud needed
• 64bit PC with at least 8GB of RAM
• 64bit Microsoft Windows version 7 / 8 / 8.1 / 10 or Windows Server version 2008+
• NVIDIA graphics card with CUDA 2.0+ capabilities and 1GB RAM.
We recommend using a machine with at least 4 CPU cores, 16GB of RAM and 1024 CUDA cores. If you do not have the NVIDIA card, you will be still able to run the application and register images, you will not be able to create textured mesh.

Benchmark
The benchmarks have been performed by Puget Systems, please refer to www.pugetsystems.com for more details or comparison with other products.
