The HandySCAN 3D technical specifications make it an industry model for high-end portable 3D measurement technology. With the characteristics of TRUaccuracy, TRUsimplicity, TRUportability and fast measurement, it can collect high-quality measurement data without being affected by environmental changes or component movement. This 3D scanner is an ideal tool for production quality assurance and product development applications due to its excellent technical performance (such as accuracy, measurement rate, high resolution, software compatibility).

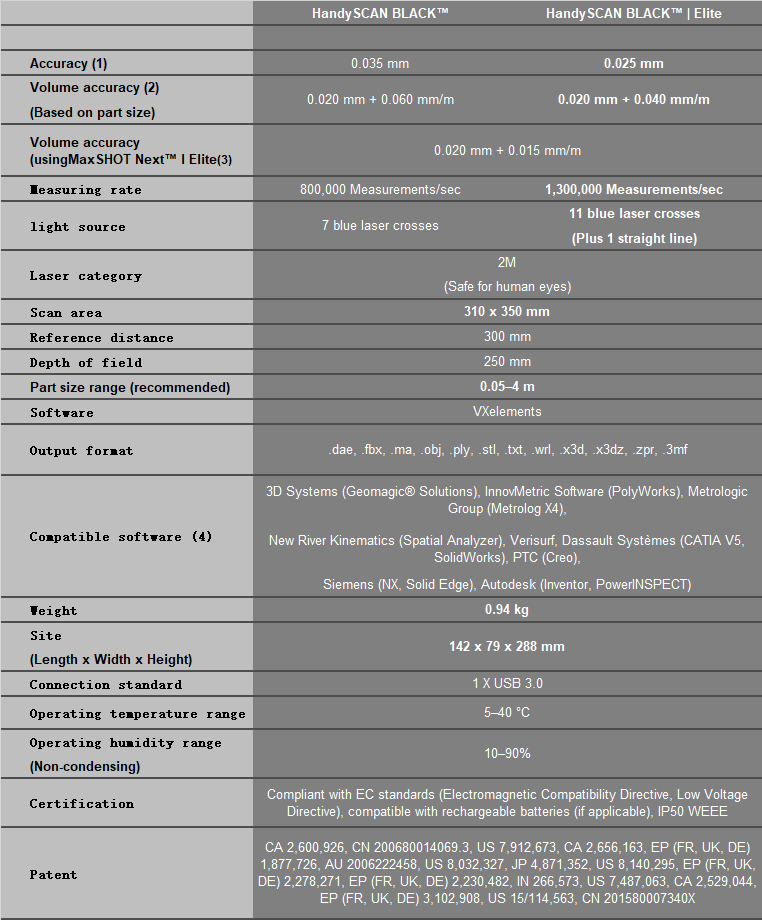

Technical Parameters
(1) HandySCAN BLACK and HandySCAN BLACK Ι Elite (ISO 17025 certification): Based on the VDI/VDE 2634 Part 3 standard. Evaluation of detection error performance based on the measurement data of the traceable sphere diameter (ISO 17025 certification).
(2) HandySCAN BLACK and HandySCAN BLACK Ι Elite (ISO 17025 certification): Based on the VDI/VDE 2634 Part 3 standard. Use traceable length standard parts to measure from different positions and directions within the working range to evaluate the sphere spacing error.
(3) For a given model, the system volume accuracy when using MaxSHOT 3D will not be better than the basic accuracy.
(4) Imported through grid and point cloud, also compatible with all major metrology, CAD and computer drawing software.
Creaform can also provide HandySCAN 307™ and HandySCAN 307™|Elite upon request.
Rigorous manufacturing process for 3D scanners
Creaform uses the highest quality management system to design, manufacture and calibrate the HandySCAN 3D scanner in accordance with the international certification standards ISO 9001 and ISO 17025.
The HandySCAN BLACK acceptance test is based on VDI\VDE 2634 (ISO 17025 certification), which aims to ensure traceability in compliance with international standards.
Each scanner is shipped with a professional certification certificate and detailed recorded test results.
International Metrology High Quality Standard
At Creaform, product and service quality is the most important. As a pioneer of portable 3D measuring equipment, we are committed to continuously satisfying customer needs by developing innovative solutions. We continue to improve our processes, improve product performance, and ensure our customers are 100% satisfied.
After-sales service, maintenance, calibration The 3D metrology center provides the following services:
Software and hardware technical support service hotline
3D scanner basic and advanced maintenance
Equipment maintenance and debugging
Rental service
3D scanner parts replacement
Parts resale
Renewal
∷
