Rail transit mobile 3D scanning system

Release time：2022-01-05 09:54viewed：times

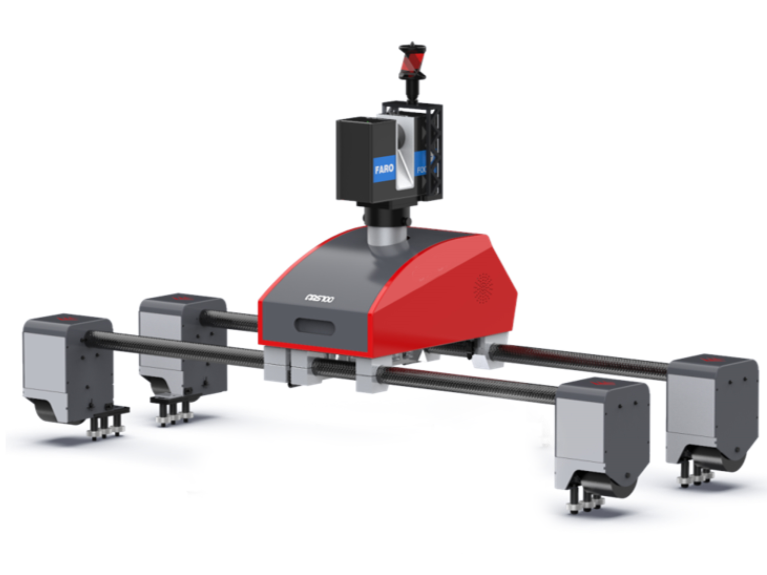

MS100 mobile 3D scanning system is a set of automatic mobile scanning measurement system for tunnel section scanning, disease scanning and boundary scanning. It can quickly and accurately measure tunnel structural parameters and apparent damage data. The system is mainly composed of 3d laser scanner. MDC mobile scanning car, TSD tunnel 3D scanning software, tablet computer. The mobile scanning car can cruise intelligently, process data quickly and stably with TSD tunnel 3D scanning software and present scanned images in real time.

The system characteristics

1.70/150/350M three different range systems to choose from;

2. The system can choose a variety of scanning modes, intelligent start scan key, simplify complex;

3. The car is made of carbon fiber material, strong and light; The total mass of the trolley is less than 30KG.

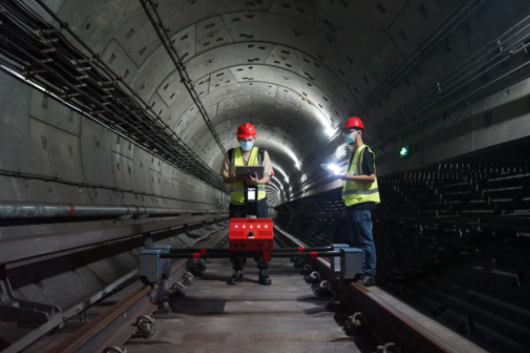

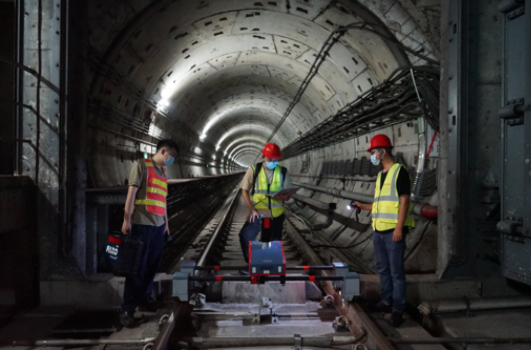

4. Adapt to various working conditions of station, shield tunneling and underground excavation;

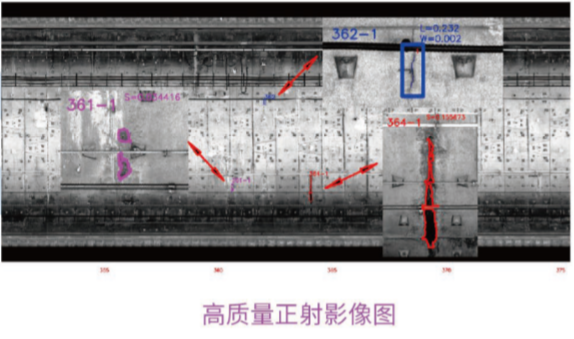

5. High quality tunnel orthographic image, resolution up to 0.5mm, 1mm, 2mm, 2.5mm;

6. Real-time synchronous processing of on-site data, greatly simplified internal workload.

The system is suitable for scanning in all periods

MS100 mobile 3D scanning system has high adaptability, it can scan the construction tunnel with simple track, and comprehensively scan the line at the end of phase I, providing basic data for the scanning of tunnel junction status in the operation period. At the same time, the system is capable of shield tunnel, mine tunnel, open-cut tunnel and other types of tunnel, suitable for all rail transit tunnels. The data results include shield ellipse analysis, shield dislocation analysis, cross section clearance analysis, limit analysis, disease analysis, etc.
