Import measuring ball/scan reference system

Product Overview:

3D laser scanner target/spherical target is suitable for all kinds of phase scanners on the market;Especially in multi-site scanning, the target ball is needed to act as the common part. In the later stage, the software can automatically identify the target ball and then complete the stitching work of scanning number of different sites quickly, effectively and accurately.

 In the process of data collection with 3D laser scanner, multiple station scans are required, and no less than three spherical targets are set for each two adjacent stations to be scanned for the splicing of data from each station in the later data processing.





Target ball specification parameters

        Brand: FARO,

        Color: White

        Type: 3D scan assistant

        Purpose: To assist late point cloud Mosaic

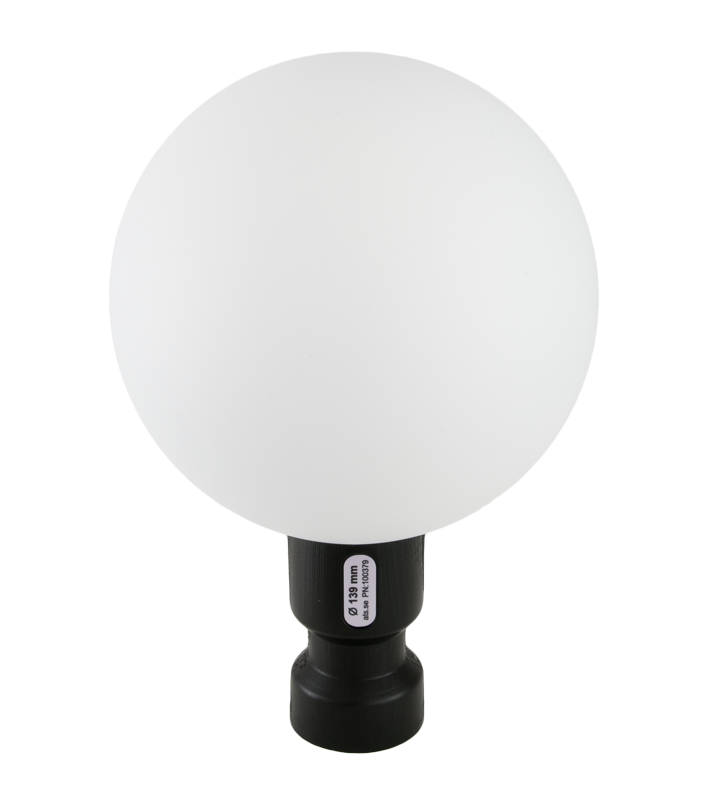

        Ball size: 139mm in diameter

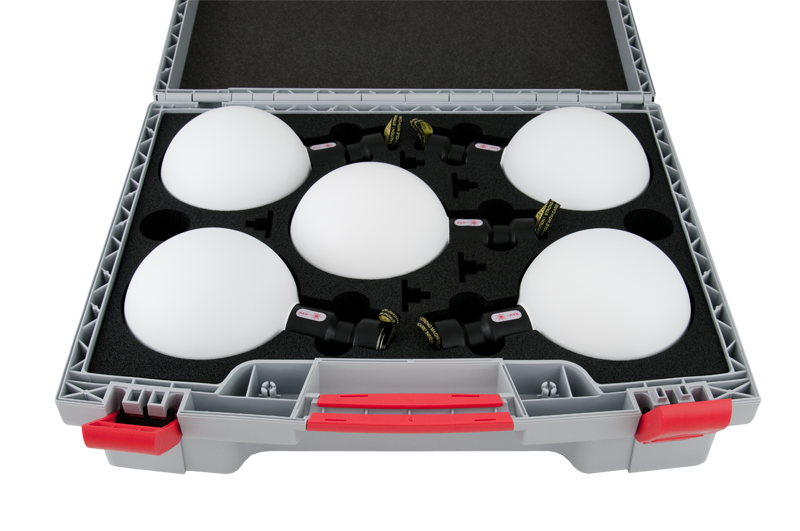

        Size: 5 / box, Ø 139 mm

        Transport box size: 500 x 420 x 175mm

        Nominal offset height of precision washer: 137mm.

        The absolute accuracy of durable target ball: Δ x, Δ y, Δ z: + / - 3 mm.

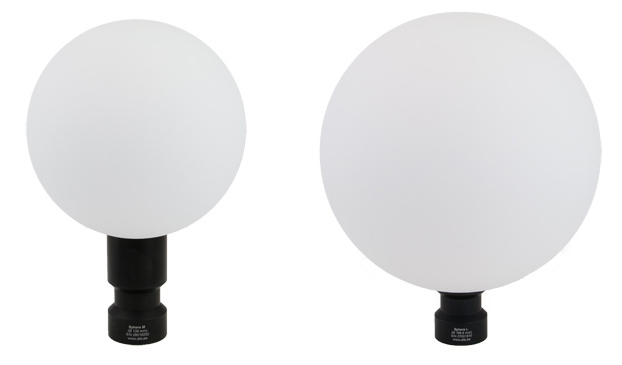

        Ball size: 198.8mm in diameter

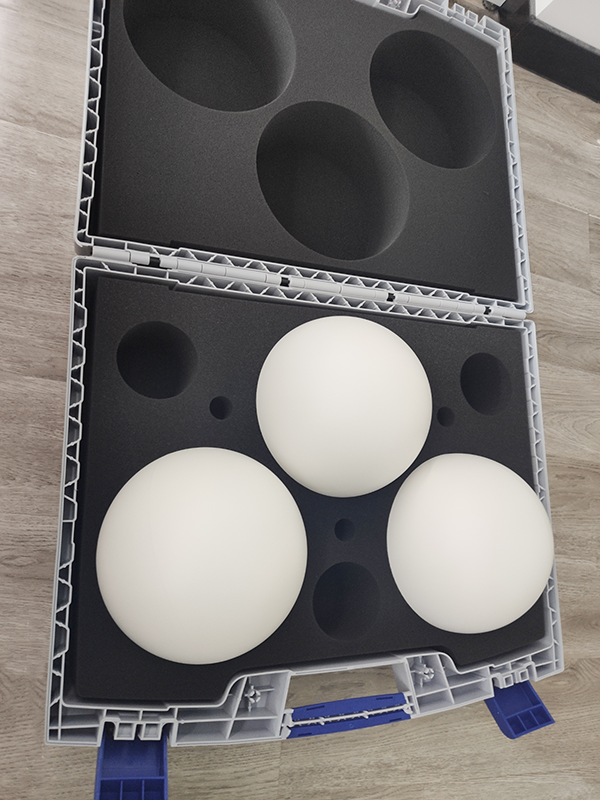

        Size: 3 / box, Ø 198.8 mm

        Transport box size: 575 x 470 x 270mm

        Nominal offset height of precision washer: 137mm.

        The absolute accuracy of durable target ball: Δ x, Δ y, Δ z: + / - 1 mm.



Advantage:

        The system can realize high precision and fast processing in the field environment.

        Quick and easy connection to mounting reference ball (with magnetic force), sturdy and lightweight case



Workflow:

        Install washers on walls, ceilings, etc

        Connect the reference ball to the washer, remove the reference ball after scanning, connect the prism, measure and remove the prism, and protect the precision washer for later scanning.By establishing repeatable benchmarks to ensure that your project changes over time, you can effectively support data acquisition and analysis of 3D point clouds during multiple repeat scans.
